Using Intent In Android (One Page To Another Page)

Hello Friends,

Today we have discussed about the intent in android.

In this project there are two xml file.

the main.xml file given below.

main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
>
<TextView
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:text="@string/hello"
/>
<Button
android:text="First Page"
android:id="@+id/close"
android:layout_width="wrap_content"
android:layout_height="wrap_content"></Button>
</LinearLayout>

page.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
>
<TextView
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:text="@string/hello"
/>
<Button
android:text="Second Page"
android:id="@+id/close"
android:layout_width="wrap_content"
android:layout_height="wrap_content"></Button>
</LinearLayout>

Now Java File given below

Intenting.java

package com.android;

import android.app.Activity;

import android.content.Intent;

import android.os.Bundle;

import android.view.View;

import android.view.View.OnClickListener;

import android.widget.Button;

public class Intenting extends Activity {

private Button NewPage;

/** Called when the activity is first created. */

@Override

public void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.main);

this.NewPage = (Button)this.findViewById(R.id.close);

this.NewPage.setOnClickListener(new OnClickListener() {

@Override

public void onClick(View v) {

Intent i = new Intent(Intenting.this, New.class);

startActivity(i);

}

});

}

}

Now Second java file given below.

New.java

package com.android;

import android.app.Activity;

import android.os.Bundle;

public class New extends Activity {

/** Called when the activity is first created. */

@Override

public void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.page);

}

}

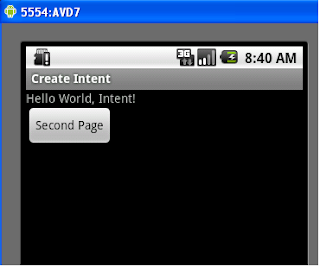

Image For first page

















Image For Second Page

9 comments:

Anonymous said...

Add to manifest file.

Anonymous said...

Add activity android:name=".New" to manifest file.

YOGESH said...

ADD

Anonymous said...

if and.Main is my package in src folder of project. and the New.java file is present in this package then what should I add to manifest file?

Gaurav said...

Hi, i m getting 3 error after save the file
1)Intenting.java
error like (id cannot be resolved or is not a field)
2) page.xml
error like(
Multiple annotations found at this line:
- error: Error parsing XML: not well-formed (invalid
token))
3) page.xml and main.xml
android:text="Second Page"
[I18N] Hardcoded string "Second Page", should use @string resource
please tell me step by step (if possible plese take screenshot) how can solve this i am the very beginner in java android programming.

Gaurav said...

Hi all,
Any one can help me.....

Anonymous said...

hello all..
please somebody help me.. I want to build my application about SMS application. how to make SMS application to activate another application in android? help mee.. :'(

abhiraj said...

I am not able to navigate from one page to another so please can anyone tell wats the error in this code.


import android.view.View;
import android.widget.TextView;

public class MainActivity extends Activity {

@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
TextView ContactActivity=(TextView) findViewById(R.id.activity_main);
ContactActivity.setOnClickListener(new View.OnClickListener() {

public void onClick(View v) {
// TODO Auto-generated method stub
Intent i = new Intent(getApplicationContext(), ContactActivity.class);
startActivity(i);

}
});
}

@Override
public boolean onCreateOptionsMenu(Menu menu) {
getMenuInflater().inflate(R.menu.activity_main, menu);
return true;
}
}

Neha Lokhande said...

every time i click on the button i do not get my next screen but an error msg dat my program has unfortunately stopped working. pls help
